XML

The Imixs-Workflow core API provides a XML interface to translate all workflow and business information into an open and platform neutral data format. The XML API provides methods to transform the generic value object org.imixs.workflow.ItemCollection into a XML representation. The Imixs XML API is based on the JAXB specification (JSR-222) and can be integrated very easy in any common java framework. The XML API is also used by the Imixs-Workflow Rest API.

Data Objects

The Imixs XML API make use of the Java Architecture for XML Binding (JAXB) to translate the Imixs class ItemCollection into XML. JAXB defines a standard to bind java representation to XML and vice versa. It manages XML documents and XML schema definitions (XSD) in a transparent, object-oriented way that hides the complexity of the XSD Language.

The Imixs XML API defines the following XML Elements:

  • item - Represents a single item inside a document. The element can be identified by the attribute name and a value list of any xsd schema types.
  • document - The element document is a collection of item elements and represents an Imixs-Workflow data object.
  • data - The data root element represents a list of documents.

The following example shows how a Imixs Data is represented in XML:

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<data xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:xs="http://www.w3.org/2001/XMLSchema">
    <document>
       <item name="$modified">
         <value xsi:type="xs:dateTime">2018-11-06T12:53:00.402Z</value>
       </item>
       <item name="$processid">
         <value xsi:type="xs:int">5800</value>
       </item>
       <item name="$uniqueid">
         <value xsi:type="xs:string">7a63950d-9b67-4dc8-8643-0baf8f8670c5</value>
       </item>
       <item name="$workflowgroup">
         <value xsi:type="xs:string">Invoice</value>
       </item>
       <item name="_invoice_numbers">
         <value xsi:type="xs:string">4711-1</value>
         <value xsi:type="xs:string">4711-2</value>
       </item>
    </document>
</data>

The following section explains the XSD datatype definitions for the elements in more detail:

xmlItem

The “xmlItem” data type represents the XML element item.

The xmlItem is a complex data type identified by the attribute name. An xmlItem contains an unbounded list of values of the type “xsd:anyType”. This XML data type is mapped to the java class

org.imixs.workflow.xml.XMLItem

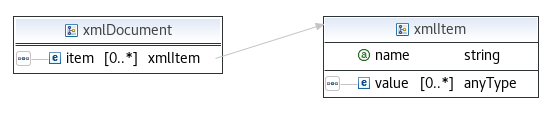

xmlDocument

The “xmlDocument” data type holds a collection of the XML element item.

The xmlDocument represents a single workitem or document containing a collection of items. The wrapper class for this complex data type is the class org.imixs.workflow.ItemCollection defined in the Imixs Workflow API. This XML data type is mapped to the java class

org.imixs.workflow.xml.XMLDocument

xmlDataCollection

The complex data type “xmlDataCollection” holds a collection of the XML element document.

This datatype represents a view of workitems or documents managed by the Imixs-Worklfow engine. This data type is mapped to the java class

org.imixs.workflow.xml.XMLDataCollection

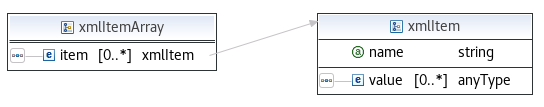

xmlItemArray

The “xmlItemArray” data type holds a collection of xmlItem elements and is used to embedd xmlItem into itself.

This XML data type is mapped to an array of the java class

org.imixs.workflow.xml.XMLItem

Data Type Mapping

The data types used in the value list of a xmlItem can be mapped on different platforms. The following section will give a short overview about the usage of datatypes in the Java and the .NET platform.

XML Schema Type Java type .NET type
xsd:byte Byte,byte
xsd:boolean Boolean,boolean boolean
xsd:short Short,short
xsd:int Integer,int
xsd:long Long,long
xsd:float Float, float float
xsd:double Double, double double
xsd:string java.lang.String string
xsd:dateTime java.util.Calendar dateTime
xsd:integer java.math.BigInteger
xsd:decimal java.math.BigDecimal decimal

XML Schema

The purpose of a XML Schema is to define the legal building blocks of an XML document. XML Schemas are used in Web Services to define data objects but also in other components working with XML files.The Imixs XML API provides a XML Schema describing the XML Dataobjects. This schema can be used for different requirements, e.g. the Imixs REST Services API. The following code shows the XML schema:

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<xs:schema attributeFormDefault="unqualified" elementFormDefault="qualified" version="1.0" xmlns:xs="http://www.w3.org/2001/XMLSchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">

  <xs:element name="data" type="xmlDataCollection"/>
  <xs:element name="document" type="xmlDocument"/>
  <xs:element name="item" type="xmlItem"/>
  <xs:element name="count" type="xmlCount"/>

  <xs:simpleType name="xmlCount">
    <xs:restriction base="xs:long"/>
  </xs:simpleType>

  <xs:complexType name="xmlDocument">
    <xs:sequence>
      <xs:element name="item" type="xmlItem" form="unqualified" nillable="true" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>

  <xs:complexType name="xmlItem">
    <xs:sequence>
      <xs:element name="value" type="xs:anyType" form="unqualified" nillable="true" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
    <xs:attribute name="name" type="xs:string"/>
  </xs:complexType>

  <xs:complexType name="xmlDataCollection">
    <xs:sequence>
      <xs:element name="document" type="xmlDocument" form="unqualified" nillable="true" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>

  <xs:complexType name="xmlItemArray" final="#all">
    <xs:sequence>
      <xs:element name="item" type="xmlItem" minOccurs="0" maxOccurs="unbounded" nillable="true"/>
    </xs:sequence>
  </xs:complexType>
</xs:schema>
