The Imixs-BPMN Task Element

When a Imixs BPMN Task Element is selected in the Drawing Canvas, different settings can be configured from the tabbed property sheets displayed in the Property View.

The property settings are grouped into different sections.

General Properties

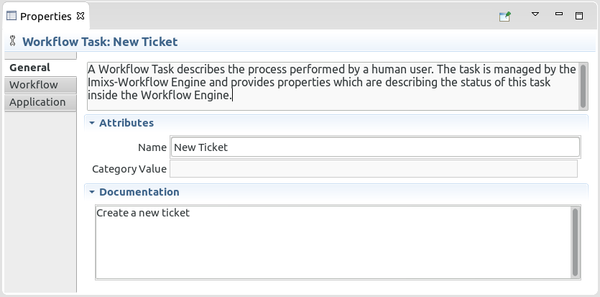

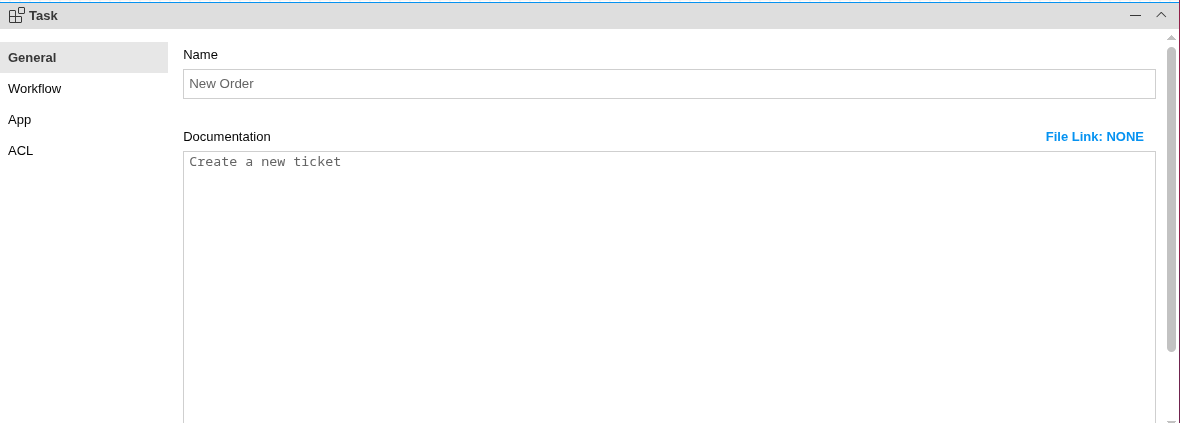

The property tab ‘General’ of a ‘Task’ element defines basic BPMN attributes.

Name

The name of the Task element is used as an human readable status identifier. The name describes the status of a process instance within the process model (e.g. “open” or “approval” “closed”).

Note: Inernally each Task Element in a BPMN model has an unambiguously identifier called the ID. The ID is assigned to a running process instance to identify the status of a WorkItem controlled by the Workflow Engine.

Documentation

The documentation of the Task element is used by the Imixs Workflow System to provide the user with additional information about the task. Typically a documentation can provide information how the task should be performed or which information need to be entered into a application.

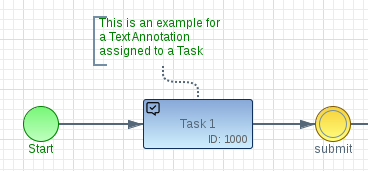

The documentation can also be created by assigning a TextAnnotation element to the task. In this case the documentation field of the Task should remain empty.

Property Type Description
id Integer unique task identifier within the model
name String name of the task element
documentation String short description

Workflow Properties

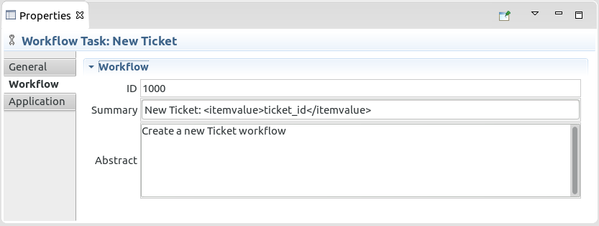

The Tab ‘Workflow’ contains Processing Information of a Task element. These information will be updated after a WorkItem was processed by the Workflow Engine.

ID

Every Imixs Task Element has an unambiguously identifier called the TaskID. The TaskID is assigned to a running process instance to identify the status of a WorkItem controlled by the Imixs Workflow Engine.

Workflow Summary

The Workflow Summary is used to describe the status of a WorkItem. This can be a static or dynamic text message. The following example generates a dynamic Workflow Summary from the WorkItem property ‘ticket.number’.

Open Ticket: <itemValue>ticket.number<itemValue>

Workflow Abstract

The Workflow Abstract defines the long description of a WorkItem. The Abstract is similar to the Workflow Summary and can also be dynamically computed from WorkItem properties. The following example shows how the abstract can be computed from WorkItem properties using the HTML markup language:

 Ticket opened by <itemValue>$creator<itemValue>
 <br />
 Ticket No.: <itemValue>ticket.number</itemValue>
 <hr />

See the Text Replacement feature how to insert WorkItem Values into a message text.

Property Type Description
workflow.summary String The definition of a workflow summary
workflow.abstract String The definition of a workflow abstract

Application Properties

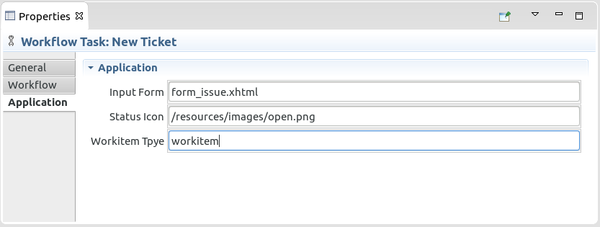

The Property Tab ‘Application’ defines information used to control the behavior of a WorkItem in the workflow application.

Input Form

The ‘Input Form’ can be used to control how a WorkItem in a specific status is displayed or how it can be edited inside the workflow application. This allows the model to control the behavior of the application in a specific way.

Status Icon

A ‘Status Icon’ can be a Image URL to visualize the current status of a WorkItem.

WorkItem Type

The ‘WorkItem Type’ is a category assigned to the WorkItem by the Workflow Engine when the WorkItem was processed.

Property Type Description
application.editor String Form editor id to be assigned to a process instance
application.icon String Status icon to be assigned to a process instance
application.type String type definition to be assigned to a process instance

ACL Properties

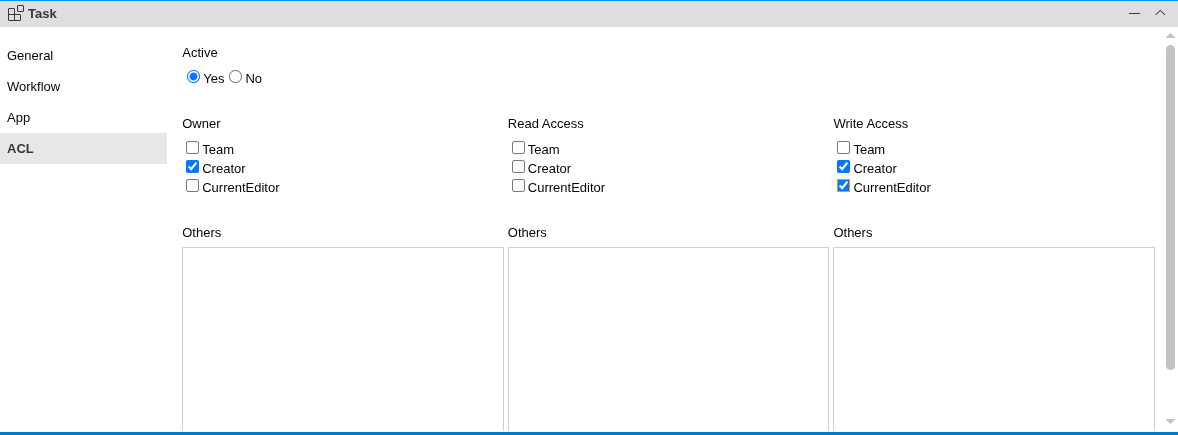

The ACL defines the read-, write- and ownership, an actor will be granted for, after processing a WorkItem.

Actors play an essential role within a human-centric workflow system. In Imixs-Workflow the actors can be defined statically by adding user- or group IDs, or the ACL can be dynamically computed based on the properties of a process instance. The dynamic mapping of actors to a workitem property is defined by the process properties of the workflow model.

Note: If the ACL setting is defined on Event level, the ACL settings on the Task Level will be overwritten.

Owner, Read and Write Access:

The ACL of a WorkItem is defined in three different layers.

  • The ‘Owner’ describes the users assigned to the process instance. This setting defines the users task list.

  • The ‘Read Access’ restricts the general access to a process instance. Only users which are assigned to the Read Access can access the process instance. If no read access is defined at all, the process instance is not read restricted.

  • The ‘Write Access’ restricts the write access to a process instance. The Write Access depends on the AccessLevel a user is granted for. If a user is assigned to the role org.imixs.ACCESSLEVEL.AUTHORACCESS and is not listed in the Write Access List, the user is not allowed to update the process instance. Find more details in the security section.

The ACL can be defined either in a static or by a mapping between the properties of the process instance to the ACL definition.

The Static ACL List:

User- or Group IDs added to the ACL have to match the login name and role definitions of the workflow application. Imixs-Workflow defines the following functional roles which can be added to a static ACL definition:

  • org.imixs.ACCESSLEVEL.READACCESS
  • org.imixs.ACCESSLEVEL.AUTHORACCESS
  • org.imixs.ACCESSLEVEL.EDITORACCESS
  • org.imixs.ACCESSLEVEL.MANAGERACCESS

The ACL Mapping:

The ACL Mapping is used to map a property of the process instance to the ACL. The mapping list can be defined by the Process Property Editor.

See also the section security settings for more details about access control of Imixs-Worklow.

Property Type Description
acl.update boolean indicates an ACL update on the task level
acl.owner_list String List a static owner list
acl.owner_list_mapping String List defines the mapping of a workitem property to the owner list
acl.readaccess_list String List the a static read access list
acl.readaccess_list_mapping String List defines the mapping of a workitem property to the read access list
acl.writeaccess_list String List the a static write access list
acl.writeaccess_list_mapping String List defines the mapping of a workitem property to the write access list
